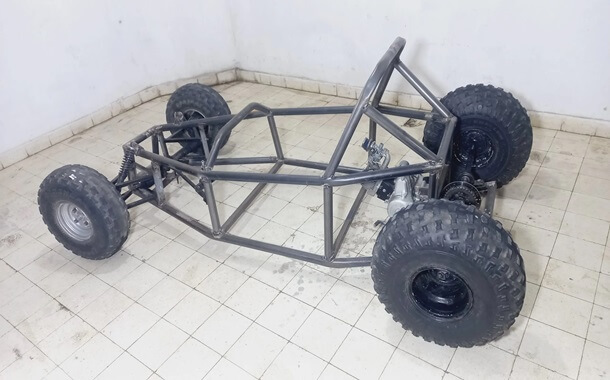

How Much Does It Cost to Build a Tube Chassis?

Last Updated on August 21, 2024
Written by CPA Alec Pow | Content Reviewed by CFA Alexander Popinker

Constructing a custom tube chassis to underpin a high-performance race car, dragster, or off-road vehicle requires extensive planning, precise welding skills, and a substantial budget. But exactly how much should builders expect to invest in this major fabrication project?

This guide goes into pricing based on intended vehicle purpose, material selection, tools and equipment investments, the benefits of professional experience, rules compliance, and tips for stretching fabrication dollars.

How Much Does It Cost to Build a Tube Chassis?

Between affordable DIY kits and full custom chassis from professional race car builders, overall costs typically range from $5,000 for a basic kit up to $200,000 or more for an intricately designed chassis destined for elite level racing.

Entry-Level DIY Tube Chassis Kits – $5,000 to $15,000 – Kits provide some pre-formed main tubes to weld together but still require extensive assembly. Budget at least $5,000 more for the necessary metalworking tools if not already owned.

Professionally Built Chassis – $25,000 to $200,000+ – A fully custom chassis hand-built from the ground up by expert motorsports fabricators carries understandably higher yet often warranted costs.

Pro Street Drag Racing Chassis – $125,000 to $200,000

Pro Modified Drag Racing Chassis – $80,000 to $150,000

Dirt Track/Circle Track Racing Chassis – $30,000 to $60,000

Rallycross/Rally Racing Chassis – $30,000 to $80,000

Pre-Runner/Trophy Truck Off-Road Chassis – $25,000 to $50,000

Rock Bouncer/Rock Crawler Off-Road Chassis – $10,000 to $30,000

For most builders lacking fabrication expertise, hiring professionals avoids DIY trial and error pitfalls.

According to a detailed discussion on YouTube, one builder estimated that the total cost for materials alone to build a tube chassis could reach approximately £2,827, which translates to around $3,500.

This estimate includes costs for various types of tubing, welding rods, and other consumables needed for the build. The breakdown provided in the video highlights the costs of different tubing sizes and the associated expenses for welding materials and tools.

On the For A Bodies Only Mopar Forum, users shared insights about the costs involved in building a tube chassis. While specific prices were not universally agreed upon, one user noted that building a custom tube chassis could easily exceed $10,000, depending on the specifications and the builder’s expertise. This reflects the high-end market for custom chassis work, particularly for racing applications.

In a thread on Yellow Bullet Forums, participants discussed the costs of building a tube chassis for a second-generation Camaro. Estimates ranged from $3,000 to $5,000 for a basic mild steel tube chassis, with additional costs for features like a four-link suspension. This range suggests that while basic builds can be relatively affordable, more complex designs can significantly increase the overall cost.

A post on Reddit by a Formula SAE team member indicated that their tubular chassis cost around $1,500 to $2,000 for materials, with additional expenses for jigging materials and other consumables. They mentioned that their total costs could reach up to $9,000 when factoring in outsourced labor and manufacturing. This highlights how group projects can sometimes lead to more economical solutions when resources are pooled.

Finally, a discussion on Race-Dezert mentioned that for a more extensive modification involving a tube chassis, costs could be around $15,000 for a comprehensive build that includes significant modifications like a four-link suspension and other enhancements.

This reflects the higher end of the market, especially for off-road or racing applications where durability and performance are critical.

Crafting Custom Tube Chassis

Tube chassis replace factory stock vehicle frames with a specialized custom-designed structure fabricated from welded metal tubing. The benefits over stock chassis include:

• Lightweight yet super-rigid construction that resists torsional flex.
• Fully configurable layout to optimize weight distribution and lower center of gravity.
• Component positioning tailored specifically for intended vehicle purpose.
• Ability to incorporate chassis stiffening and safety enhancements cost-effectively.

However, successfully bringing a tube chassis design to life requires substantial investments in fabrication skills, metalworking equipment, materials, design expertise, and strict construction techniques. For amateurs, acquiring these demands either major effort and costs to learn, or hiring experienced professionals.

Factors Influencing Fabrication Expenses

Chosen Tubing Material – Mild Steel, Chromoly Steel, Aluminum

Material selection impacts cost, weight savings, and overall chassis strength and durability for intended use. Chromoly steel offers a popular blend of affordability and performance.

Complexity of Design Geometry and Build Difficulty

The more intricate the chassis design in terms of precision mitered multi-plane bends and fittings, the more fabrication expertise and time required to construct accurately.

Included Chassis Components, Mounts, and Hardware

You might also like our articles on the cost of a sprint car, IndyCar, or top fuel dragster.

Welding in additional mounting points, clips, braces, and hardware to attach body, suspension, drivetrain, and cage components incrementally increases cost in materials and labor time.

Integrated Safety Enhancements

Incorporating an extensive racing roll cage effectively doubles the required labor hours and material expenses but provides essential protection for vehicle occupants.

Customization and Finishings

Personalized design flair choices like custom tube bending, unique geometries, powder coating, paint, polishing, and other custom touches understandably add cost but allow builders to create unique chassis.

Additional Expenses

Specialty Metalworking Equipment and Tooling – Shops invest $10,000+ in crucial equipment like precision electric tubing benders, notchers, chop saws, jigs, clamps, and TIG welders to produce efficient and high-quality results. DIY builders face the same costs.

Seasoned Motorsports Fabrication Labor and Expertise – Accessing experienced fabricators intimately familiar with chassis construction techniques ensures correct execution – reflected in their higher shop labor rates. This expertise is difficult to self-teach.

Drivetrain, Steering, Suspension, and Braking Components – These supporting mechanical systems represent massive additional expenses when creating a complete competitive rolling chassis.

Body and Mounting Considerations – Fabricating or purchasing a lightweight body shell, followed by immense effort marrying it to the chassis via precise mounting points, requires another specialty skillset.

Safety Certification Requirements – Certain mandated safety additions like internal roll cages add major costs in materials and effort but are compulsory to meet racing sanctioning body rules.

Transport and Registration Requirements – Factor towing or trailering needs for completed chassis along with costs of certifying and registering it for legal public road transit to events.

Recommendations for DIY Builders

Benefits of Starting With DIY Chassis Kits

• Pre-formed properly mitered main tubes reduce the metal shaping skills needed for initial practice.
• Offer massive upfront cost savings over contracting full custom professional fabrication.

Overcoming Challenges for Inexperienced Builders

• Lack of proper welding equipment experience leads many DIY novices to disappointing structural or alignment results requiring rework.
• Even minor chassis errors risk catastrophic safety implications at speed.

Strategies to Maximize DIY Success Within Budget

• Seek regular hands-on guidance from a professional chassis builder willing to mentor through the process.
• Allow extensive practice time welding scraps to hone techniques before tackling the main chassis.
• Consider enrolling in motorsports fabrication and welding courses to gain necessary skills.
• Work on simple kits before attempting complex multi-plane chassis.
• Focus budget on quality equipment like a precision tubing bender and tubing notcher even if it means a simpler design. Proper tools are imperative.

Realistically, lacking extensive direct training, hiring professionals is highly recommended for most builders.

DIY Tube Chassis Kits vs Professional Fabricators

DIY Tube Chassis Kits

• Carry lower upfront equipment costs from $5,000 to $15,000 for materials.
• Require massive time investments for proper assembly, alignment, and welding.
• Without true fabrication expertise, risk deficient structural quality or alignment.

Professionally Built Chassis

• $25,000 minimum up to over $200,000 for complex projects.
• Expert construction proven reliable and aligned accurately the first time.
• Peace of mind knowing experienced builders handled demanding fabrication safety.

Hybrid Approach

• Purchase pre-bent kit components but have professionals complete final critical welding.
• Reduces cost over 100% custom fabrication while still leveraging expert assembly.

Final Words

Constructing a custom tube chassis from the ground up demands major investments starting at $5,000 for DIY kits yet quickly escalating to $200,000+ for intricate professional race car chassis builds.

But carefully weighing intended vehicle purpose and design goals against experience level, budget constraints, and options to utilize professional guidance allows builders to reap tremendous rewards from chassis creations precisely tailored to their aspirations.

With pragmatic planning, tube chassis fabricators can fulfill their dreams while avoiding common budgetary and quality pitfalls along the journey.

Answers to Common Questions

What are tube chassis made of?

The majority are built from welded chromoly or mild steel tubing for strength and weldability, while aluminum sees limited use in lighter weight sports car racing chassis.

What is a full tube chassis?

A full tube chassis replaces the entire frame with tubular sections rather than just the main perimeter frame rails, offering maximum strength optimization.

What are the advantages of a tubular chassis?

The extensive configurability and lightweight strength of welded tube construction allows placement of components and tailored stiffness levels ideal for performance applications that production car frames cannot match.
