How Much Does Metal Building Insulation Cost?

Published on August 20, 2026 | Written by Alec Pow
This article was researched using 14 sources. See our methodology and corrections policy.

A preengineered steel shell reacts quickly to outdoor heat and cold, and moisture can condense where warm interior air meets a chilled roof or wall panel.

For U.S. projects in 2026, current metal-building cost ranges place installed insulation near $1.00 to $4.00 per square foot, fiberglass near $0.40 to $1.50 per square foot, and spray foam near $1.50 to $3.50 per square foot.

A contractor’s quote may cover insulation, facing, vapor control, seam work, crew time, access equipment, cleanup, and permits. Roof and wall surface area matters more than floor area because installers bill for the surfaces receiving material. Existing insulation, corrosion, active equipment, and restricted lift access can add work that is absent during open-shell construction.

Metal-building systems are billed per square foot of insulated surface or per board foot for foam. Required R-value, roof height, climate zone, framing layout, material thickness, and whether the shell is vacant or occupied shape the final unit rate.

How Much Does Metal Building Insulation Cost?

Budget near $1.00 to $4.00 per square foot installed, with simple fiberglass work near the low end and thicker foam or difficult retrofit work near the high end.

Important numbers

• Entry fiberglass at $0.40 to $1.50 per square foot
• Spray foam at $1.50 to $3.50 per square foot
• Installed planning band at $1.00 to $4.00 per square foot

What you’re actually buying

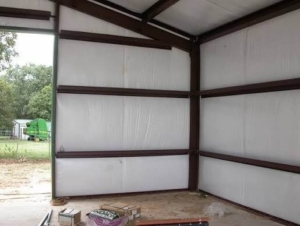

Metal-building insulation is a roof, wall, or full-envelope assembly placed against or near the steel skin. The assembly can combine fiberglass blanket, spray polyurethane foam, rigid board, facing, support bands, tape, fasteners, liner panels, and a vapor retarder. Its job is to slow heat flow, reduce air leakage, and manage moisture where warm interior air meets cold metal. Surface area drives the bill.

This work differs from loose-fill attic insulation. Crews must fit material around purlins, girts, bracing, doors, roof penetrations, corrugated panels, and structural fasteners. Fiberglass blanket suits many open-frame builds. Spray foam bonds to the shell and seals irregular joints. Rigid board can create a continuous thermal layer, but its seams and edges need careful treatment. The selected assembly also changes future panel access, repair methods, exposed-facing requirements, and the amount of usable interior space.

A worked quote

This modeled quote covers 3,000 square feet of accessible roof and wall surface with fiberglass, one lift day, routine preparation, and a permit allowance. The building is empty, dry, and free of damaged insulation. Doors and roof penetrations are already framed. Seam tape and patch material sit inside the material allowance. No mold, rust repair, panel removal, or interior liner upgrade is included.

• Fiberglass and crew work use the 2026 material, labor, and permit ranges. Material at the $0.90 midpoint produces 3,000 times $0.90, or $2,700 (at $30 per hour, earning that amount would take about 2.3 full-time workweeks, before taxes). Labor at the $60 hourly midpoint for 32 crew-hours, plus a $275 permit midpoint, produces $2,195.
• An electric scissor lift at $230 for one day, plus two-way delivery at a $175 midpoint per leg, follows the 2026 lift and delivery figures. The equipment line is $580.
• Seam tape, patch material, routine masking, and final cleanup remain inside the material and labor lines rather than appearing as separate charges.

The arithmetic is $2,700 plus $2,195 plus $580, giving a modeled total of $5,475. The quote should state whether unloading, seam repair, fasteners, waste hauling, and final cleaning sit inside that total. Missing scope becomes a change order.

Fiberglass, spray foam

Material choice changes both the unit rate and the crew’s work. Fiberglass costs less per square foot, but the quote may add facing, bands, tape, or a liner. Spray foam pricing changes with thickness because a board foot equals one square foot at one inch thick. Rigid board requires cutting, fastening, and sealed joints.

Insulation system	Published cost	Quote issue to check
Fiberglass batts or rolls	$0.30 to $1.50 per square foot for material under 2026 fiberglass material figures	Facing, support bands, compression, and seam work may be separate.
Spray foam	$1.00 to $5.00 per square foot installed under 2026 spray foam installation figures	Confirm open-cell or closed-cell foam, thickness, and surface preparation.
Rigid foam board	$2.50 to $6.00 per square foot installed under 2026 installed roof-insulation figures	Joint tape, fasteners, edge sealing, and liner panels can raise the total.

The same building can produce very different totals. Using the cited 2026 steel-building figures, 3,000 square feet of fiberglass at $0.40 to $1.50 yields $1,200 to $4,500 (about 1 to 3.8 full-time workweeks at $30 per hour). Spray foam at $1.50 to $3.50 yields $4,500 to $10,500. That gap is $3,300 to $6,000 before access, removal, facing, or repairs. Buyers comparing spray foam installation pricing should match thickness and R-value rather than comparing one square-foot rate alone.

Labor, materials, lifts

A useful proposal splits materials from field work. Material lines can include blanket, foam chemicals, board stock, facing, tape, banding, adhesives, fasteners, and protective coatings. Labor can be billed per square foot, per hour, or as one fixed installation amount. Ask whether the rate covers setup, masking, thickness checks, trimming, seam closure, cleanup, and return visits.

Access changes crew time. A clear new shell lets installers move along open purlins and girts before machinery or interior walls block the path. An occupied shop may require moving inventory, covering equipment, working around electrical runs, and using a narrow lift.

A tall retrofit with roof bracing, overhead doors, stored vehicles, and active production can consume many crew-hours even when its insulated surface matches a vacant building with the same dimensions. The thickness-based spray foam figures place one-inch open-cell work near $0.44 per square foot and three-inch closed-cell work as high as $8.70 per square foot. A flat foam rate without stated thickness is not a complete comparison.

Line items

Retrofit quotes rise when crews must uncover the steel before installing new material. Wet blanket, torn facing, loose adhesive, dust, oil, rust, and old coatings can interfere with a clean installation. Spray foam may need dry, stable substrate. Blanket systems may need replacement tabs, support bands, or liner repairs. Roof leaks and corroded fasteners belong on a repair scope before insulation covers the area.

Those ranges do not cover contaminated material or structural repairs. A change order should identify the damaged area, unit rate, disposal method, and added labor before work proceeds. The quote also needs a rule for hidden corrosion found behind blanket or liner panels. Patch work, rust treatment, door adjustments, and new interior liner sheets can exceed the insulation line on a small retrofit. A low bid that omits removal is not equal to a bid carrying full demolition and cleanup.

Three project scopes

The cases below are planning models rather than customer reports. They use a 2025-2026 metal-building cost schedule, which places installed systems from $0.50 to $4.50 per square foot and a 40-by-60 building near 4,500 to 4,900 square feet of insulated surface.

Budget case

A new storage building receives a roof-only fiberglass blanket before the roof panels are fastened. Open framing keeps lift movement and seam work simple. At 2,400 square feet and $0.80 to $2.60 per square foot, the modeled insulation line is $1,920 to $6,240 (about 1.6 to 5.2 full-time workweeks at $30 per hour). Construction timing is the main driver.

Heated shop case

A shop receives roof and wall insulation, sealed facing, and attention around overhead doors. At 4,000 square feet and $1.20 to $3.70 per square foot, a modeled board or mixed-system allowance is $4,800 to $14,800. Required thermal performance drives this case.

Occupied retrofit case

A working facility receives closed-cell foam after localized removal and cleaning. At 4,800 square feet and $1.00 to $4.50 per square foot, the insulation portion spans $4,800 to $21,600 before damaged-material removal. Access and preparation drive the upper end. Owners comparing shell scope with current pole barn kit costs should keep insulation outside the kit price unless the seller names it as included.

Roof pitch, wall height, climate

Steep roofs, tall eaves, narrow aisles, and soft exterior ground can change the equipment plan. A scissor lift may work on a smooth slab, yet a rough-terrain unit or boom lift may be needed outside. Travel charges can also appear where qualified installers cover a wide rural territory. Access sets the equipment plan.

Climate and building use shape the assembly. A heated fabrication shop, livestock building, dry warehouse, and seasonal equipment shed do not have the same moisture load. Steel purlins, girts, fasteners, and compressed blanket create parallel heat paths, so labeled insulation R-value is not the same as whole-building performance. A 2024 facing and fire-test review points to ASTM E84 testing for faced assemblies. Exposed facing and adhesive must suit the code and occupancy, not merely the thermal target. Regional bids should name the planned assembly, facing classification, vapor-control location, and code basis.

When it’s worth paying for

Professional installation makes sense where work at height, foam chemistry, vapor control, exposed facing, or occupied-space protection raises the risk of a failed job. DIY fiberglass can fit a small, open, ground-level wall. Large roof runs and two-component foam demand tighter control of coverage, temperature, adhesion, ventilation, and protective equipment.

Makes sense if

• The roof or walls require lifts, scaffolding, or fall protection.
• The building is heated, cooled, or used for moisture-sensitive stock.
• Foam thickness must remain consistent across corrugated steel and framing joints.
• The contract includes removal, liner work, tested facing, or code documentation.

Doesn’t make sense if

• The structure is open-sided and holds weather-tolerant equipment.
• A small wall section accepts standard batts from floor level.
• Roof leaks or corrosion remain unrepaired.
• Panels will soon be removed during another renovation.

DIY foam kits run about $0.80 to $1.80 per board foot, and kits can cost $300 to $850 under November 2025 DIY spray foam figures. Those figures exclude the value of the owner’s time, masking, ventilation, disposal, and repair of uneven foam. A buyer reviewing steel building project costs should budget insulation as an envelope system, not a small finishing item.

Article Highlights

• Installed work often falls near $1.00 to $4.00 per square foot.
• Use roof and wall surface area, not floor area, for the first calculation.
• Match foam bids by type, thickness, and R-value.
• Separate removal, preparation, lift use, permits, and liner work.
• New-construction access can keep labor below an occupied retrofit.

Answers to Common Questions

How much does it cost to insulate a 40-by-60 metal building?

A 40-by-60 building can have about 4,500 to 4,900 square feet of roof and wall surface. At $0.50 to $4.50 per square foot, the insulation portion can span about $2,250 to $22,050. Height, roof pitch, openings, R-value, and whether the work covers the roof, walls, or both set the final scope.

Is fiberglass or spray foam less expensive?

Fiberglass has the lower starting material rate. Spray foam costs more per square foot or board foot, but it also seals gaps and can deliver greater R-value per inch. A fair bid comparison includes facing, vapor control, seam work, thickness, and labor rather than material price alone.

Does a metal-building insulation quote include removal?

Not by default. The proposal should state whether crews will remove old blanket, damaged facing, adhesive, liner panels, or foam. It should also name disposal charges and the rate used when hidden wet material or corrosion is found.

Can insulation be installed after the building is finished?

Yes. Fiberglass liner systems, rigid board, and spray foam can be used in retrofits. Stored equipment, electrical systems, interior walls, roof bracing, and limited lift access can add labor. Leaks and corrosion should be repaired before the new assembly covers the steel.
