How Much Does Sway Bar Link Replacement Cost?

Published on May 11, 2026 | Written by Alec Pow
This article was researched using 13 sources. See our methodology and corrections policy.

A sway bar link also called an end link ties the stabilizer bar to the suspension near each wheel.

In RepairPal’s national estimate, last updated January 28, 2026, the total is $123 to $186, labor is $60 to $88, parts are $63 to $98, and the midpoint is $123+$186 divided by 2 equals $154.50 before taxes, fees.

That estimate is a starting point, but the invoice is built from line items. A shop can charge one link, a pair, or a full axle set, then add labor time, shop supplies, and any hardware that snaps off during removal. The last part is why pricing is hard to predict, because the condition of the bolts and the space around the strut or control arm is known only after the car is in the air.

Most quotes are per side, meaning one end link on the left or right. Front links are usually easier to reach than rear links, and rust can turn a simple unbolt into a cut-and-replace job. Ask whether the quote covers one link or both on that axle.

How Much Does Sway Bar Link Replacement Cost?

Jump to sections

Most sway bar link replacements land between $123 (equivalent to 4.1 hours at $30 per hour, or about $49 in 1990 dollars) and $186 installed per kit, with seized hardware being the main reason bills run higher.

• Typical midpoint is $154.50 on the national range.
• Low end is $123 before taxes and fees.
• High end is $186 before taxes and fees.

Worked total example

RepairPal’s Camry page lists a stabilizer bar link kit replacement at $144 (about $58 in 1990 dollars) to $220, split into $95 to $148 for parts and $49 to $72 for labor, last updated January 28, 2026. If you take the midpoint for a fast quote, parts land at $95+$148 divided by 2 equals $121.50 and labor lands at $49+$72 divided by 2 equals $60.50, which sums to a pre-fee subtotal of $182.

Read that $182 as the core of the bill, not what you hand over at the counter. Many shops swap both links on the same axle to keep handling even, so ask if the labor line covers one side or a set. The estimate also does not include local taxes, shop fees, or a surprise hardware line if the old nut rounds off and the tech has to cut it free.

• Parts kit midpoint $121.50
• Labor midpoint $60.50
• Subtotal $182
• Out the door add local tax, fees, and any extra hardware

If your quote is close to that midpoint, the job stayed simple. If it comes back near the top of the range, the shop is billing extra time for access, corrosion, or a second side. A written estimate with the parts brand and labor hours helps avoid surprises.

What you’re actually buying

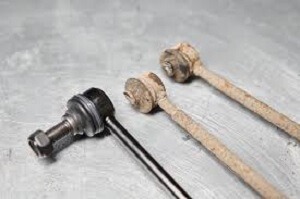

A sway bar link is a short rod with bushings or ball joints that connects the stabilizer bar to the suspension near the wheel. The bar resists body roll by twisting, and the links are the hinges that let it work as the wheels move up and down. When the joint loosens, you get play, noise, and a car that feels sloppier in quick lane changes.

Replacement means removing the old link and installing a new one with fresh hardware, then checking that the bar and nearby joints sit at the correct angle at ride height. A good shop also listens for look-alike noises from ball joints, tie rod ends, and strut mounts, since the symptoms overlap. If you want a plain-language refresher on what the link does, Car From Japan overview walks through the role in keeping the car flatter in turns.

What you pay for on this job

Parts are cheap. A link itself is not the expensive piece. A JCMSTECH breakdown lists aftermarket links at $20 (about $8 in 1990 dollars) to $60 each, OEM links at $60 to $120 each, and labor at $60 to $150 per side, with alignment listed at $0 to $100 only when other geometry parts were moved. That split matters because a shop bill can be labor-heavy even when the parts are cheap, especially if the old stud spins and the tech has to hold it with an Allen key or cut it off.

Most drivers notice the quote jumps when both sides are done at once, which is common on a front axle. Using that labor range, two sides at $60 to $150 per side becomes $120 to $300 just for labor, before parts. If you also buy two links at the aftermarket band, parts can run $40 to $120, and the same math on OEM puts parts at $120 to $240. Put together, the shopper decision is less about the link price and more about whether you want one side now or a matched set that keeps the bar loading evenly.

Hidden costs

A sway bar link swap can be a stand-alone job, but the invoice can grow when the shop finds other loose pieces in the same corner. If the link failure came with uneven tire wear or the shop loosened other steering parts to get access, you may be pushed into an alignment check or a follow-on repair. Some customers get surprised by a second visit, because the rattling was a worn ball joint or tie rod end and the new link did not change the noise.

Ask the service writer to separate what is required from what is preventative. If an alignment is suggested, ask what was loosened and whether the readings were out of spec before the repair. That keeps a small suspension fix from turning into a large shopping list.

Three mini cases

These estimates show the spread you can see for the same basic repair, based on parts choice and local labor. They are not quotes, but they help you spot a number that looks out of line. Use them to frame calls to local shops.

If your quote sits far outside these bands, ask what extra line item is driving it, such as broken hardware, added bushings, or an alignment.

Case	Total	Parts	Labor	Notes
budget commuter totals	$70 to $280	Front pair $20 to $85, rear pair $15 to $35	$45 to $150	Parts and labor together, per link or pair varies
dealer visit totals	$100 to $320	Pair $40 to $120	$60 to $200	Uses a pair and a shop labor window
Corolla estimate	$158 to $294	$49 to $134	$109 to $160	Estimator updated January 2026, excludes taxes and fees

Look at how labor dominates when access is poor. When you call, state whether you want one side or both, and ask if the shop expects to replace hardware.

What pushes the total up

Rust changes everything. A link job that is a quick unbolt on a dry-climate car can become a cut-and-grind session on an older vehicle that has seen road salt, and that extra time shows up as labor. Another cost driver is diagnosis. A clunk can come from the link, but it can also come from a ball joint, tie rod end, or a steering support part, so a shop may write an estimate with a second line for inspection or follow-on parts if play is found.

Labor also moves with local wages and shop overhead, which is why two cities can quote the same part differently even on the same vehicle. The Bureau of Labor Statistics notes that pay varies by experience and geographic area in its profile of automotive service technicians and mechanics, and its state and area data links are a good way to sanity-check what a labor market looks like near you. If the inspection finds steering looseness, a shop may point you toward related repairs such as an idler arm replacement, which often costs more than the link itself and can reset the budget.

If the price jumps, ask what line item changed and why.

DIY vs shop pricing math

DIY math starts with parts. On AutoZone link listings, the parts listing prices run from $21.99 for a basic link kit to $91.99 for a higher-priced kit as of May 2026, and that range is why some drivers take the repair on at home. The catch is time and tools. You need a safe lift, hand tools, and usually penetrating oil, and you need patience if the stud spins in the joint. A stripped nut can turn a cheap part into an all-day fight.

If you want to see the workflow before you decide, iFixit Celica guide shows the basic sequence of lifting the car, removing the wheel, and swapping the link. Even with a clean how-to, the shop option buys speed and a second set of eyes on the rest of the suspension. That matters when the noise is coming from somewhere else or when you drive a lot of highway miles and want the car back the same day. DIY can save labor, but a comeback job can wipe out the savings.

When it’s worth paying for

This is one of those suspension repairs that is small on paper but tied to safety feel. The decision is less about the part and more about how much risk you want to carry in the driveway. If the car already has several clunks, a professional inspection can keep you from throwing parts at the wrong corner, and it can catch bigger suspension problems early.

Makes sense if

• Inspection finds play in the end link joint on bumps.
• The car sees winter salt and the link hardware looks seized.
• You want both links done so the stabilizer bar loads evenly.

Doesn’t make sense if

• The noise is traced to bar bushings or strut mounts.
• A shop cannot show looseness, torn boots, or play.
• You lack safe lifting gear and the stud spins free.

If the inspection uncovers multiple worn pieces, the link job is just the front edge of a larger bill. That is when a broader suspension estimate becomes useful, since labor can overlap across repairs. The suspension system repair cost numbers show how fast totals climb when shocks, springs, and ball joints are involved. In that situation, bundling work can cut repeat alignment charges and repeated teardown time.

Answers to Common Questions

Do I need an alignment after link replacement?

Many cars do not, because the link bolts do not set camber or toe. Shops still recommend an alignment if other steering parts were loosened, or if you were already seeing uneven tire wear.

Can I replace just one sway bar link?

You can, but the opposite side often has similar wear. If you are paying labor anyway, many owners replace both links on the same axle to avoid a second visit and keep roll stiffness balanced.

How long can I drive with a bad link?

A loose link usually is not an immediate breakdown, but the car can lean more in corners and the noise can mask other problems. The safer move is to schedule the repair soon, especially if handling feels unstable.
