How Much Does Trenchless Pipe Lining Cost?

Published on April 28, 2026 | Written by Alec Pow
This article was researched using 14 sources. See our methodology and corrections policy.

Trenchless pipe lining is a way to rehabilitate a damaged drain or sewer line from the inside, using cleanouts or small access pits instead of a long open trench.

Quotes can be written per linear foot or as a single project number, and the unit changes with pipe diameter, access, and how much cleaning is needed before the liner goes in. Many bids also break out camera inspection, prep work, and surface patching as separate line items, so two proposals with the same footage can land far apart if one includes heavy descaling or extra access work.

Trenchless pipe lining is quoted per project or per linear foot, and the unit shifts with pipe diameter, access pits or cleanouts, and how much cleaning is needed before the liner goes in.

How Much Does Trenchless Pipe Lining Cost?

Jump to sections

• CIPP and pipe bursting: Angi’s trenchless method table lists cured-in-place lining at $80 to $250 per foot and pipe bursting at $60 to $200 per foot, updated April 2026.
• Trenchless vs excavation: This Old House’s replacement method section lists trenchless methods at $60 to $250 per linear foot and traditional excavation at $50 to $200 per linear foot, updated March 2026.
• Camera inspection add-ons: Angi’s per-visit inspection pricing lists sewer camera inspections at $271 to $1,730 per visit and hydro-jetting add-ons at $150 to $800, updated April 2026.

What you’re actually buying

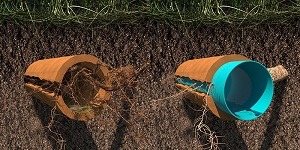

Trenchless pipe lining, often called cured-in-place pipe or CIPP, repairs a damaged drain or sewer by inserting a flexible liner into the existing pipe and curing it so it hardens into a new inner wall. Homeowners are buying a rehabilitation step that can avoid long excavation runs across a yard, driveway, patio, or basement slab, but the work still relies on access points, cleaning, and camera verification before and after curing. The liner has to travel through the host pipe, which means the old line must still be continuous enough for insertion and curing, even if it has cracks, root intrusion, or corrosion.

This is not the same as open-cut replacement, where the old pipe is excavated and removed, and it is not the same as pipe bursting, where a bursting head breaks the old pipe as a new pipe is pulled through. Lining keeps the route and grade of the existing line, so it cannot correct a poorly sloped run, and it cannot replace a missing section. When lining is feasible, the tradeoff is often less restoration work, paired with higher prep and specialty-equipment labor inside the pipe.

Trenchless lining vs alternatives

The biggest billing difference among these methods is what happens outside the pipe. Open-cut replacement includes excavation, spoils removal, and then restoration of whatever got disturbed. Lining and bursting can reduce how much surface is opened, but they still require access points, setup time, and a verification pass with a camera. That is why some bids read more like a checklist of tasks than a single per-foot number.

Pipe bursting sits between lining and replacement. The U.S. EPA describes pipe bursting as a trenchless method that breaks the existing pipe outward with a bursting tool while pulling a new pipe into place, which can matter when capacity is a concern. Lining, by contrast, creates a new interior wall and can slightly reduce inside diameter, so the choice can affect scope, access pits, and how much restoration is required around those pits.

Per-foot lining ranges

Per-foot numbers help with quick budgeting, but many lining jobs still price like a minimum crew ticket plus footage. Short runs do not remove the need for a camera inspection, cleaning, liner insertion, curing, and reinstatement of branch connections. That setup time can dominate the bill when only a small section is being lined.

Fixr’s pull-in-place range lists pipe lining at $60 to $200 per foot, updated January 2025, and a 35-foot segment works out to $2,100 at the low end because 35 times 60 equals 2,100 and $7,000 at the high end because 35 times 200 equals 7,000.

Scope signal on the bid	What it usually means	Where the cost tends to land
Per-foot number only	Contractor is simplifying, but inspection and cleaning may be separate	Use it for a rough bracket, then ask what is excluded
Minimum job plus footage	Setup, curing equipment, and crew time priced as a base ticket	Common on short runs and interior lines
Access and restoration allowances	Concrete saw cutting, driveway patching, or landscaping repair not fully defined	Can change after exposure of the pipe path

What you’re paying for

On a residential bid, lining materials matter, but labor steps often drive the invoice. The crew has to confirm pipe diameter and condition with a camera, then clean the host pipe, which may include hydro jetting, descaling, and root removal. After that, the liner is inserted and cured, branch connections are reopened, and the contractor verifies flow with a post-lining camera pass.

Some proposals combine these steps into one line item, and others split them into camera work, cleaning, liner installation, and reinstatement. If you see a low per-foot number, check whether it assumes a simple cleaning pass and a single access point. If the pipe has offsets, standing water, or heavy scale, the labor side can grow faster than the liner material line.

Regional pricing and access

Regionality shows up less as a universal city multiplier and more as rules and site constraints that force extra scope. Work near the street can bring permitting, inspections, or traffic control into the project, and that can move totals even when footage is not long. Access also changes the job plan. A cleanout in the right place can keep digging limited, while a slab line can require concrete cutting just to get equipment into position.

NuFlow’s scope and timeline notes say CIPP work for a 100-foot run is commonly planned around a CCTV inspection and a written scope covering footage, access points, prep work, and what is excluded, and that CIPP can take 1 to 2 days in some setups. Those planning steps tend to show up as billed visits or separate line items in markets where access is tight and scheduling has to coordinate around occupied buildings.

Line items

Most surprise dollars come from prep and reconnections, not from the liner itself. Heavy roots can require repeated cutting and flushing before the line is ready for a liner. Multiple branches can increase reinstatement work after curing. If the only workable access is under concrete or hardscape, you may see charges for cutting, haul-off, and patching, sometimes split across trades.

Angi’s published trenchless brackets list lining projects between $1,900 and $6,000, and also flag permits up to $1,000 and camera inspections at $175 to $350, updated April 2026.

Real trenchless pipe lining quote

Itemized quotes make it easier to compare bids because lining proposals can hide key steps under one label. A clean structure includes camera inspection, cleaning and prep, liner installation and curing, reinstatement of branches, a post-lining camera pass, and a clear note on what restoration is included.

For a worked example with an itemized total, HomeAdvisor’s basement and access ranges list trenchless basement replacement at $60 to $250 per foot and access excavation at $400 to $1,200 per 100 linear feet, updated June 2025.

• Lining install: 40 feet at the low-end rate equals $2,400 because 40 times 60 equals 2,400.
• Access excavation allowance: 40 feet at the low-end access rate equals $160 because $400 per 100 feet is $4 per foot and 40 times 4 equals 160, with this access excavation reference showing how excavation can sit inside broader sewer-line replacement pricing.
• Subtotal before restoration: $2,560 because 2,400 plus 160 equals 2,560.

Hidden costs

NuFlow’s per-foot comparison ranges list CIPP relining at roughly $80 to $250 plus per foot in many residential applications and dig-and-replace at $150 to $450 plus per foot once excavation and restoration are included, posted January 2026.

The easiest place to miss money is at the edges of the job. Contractors may include one camera pass but bill extra video work, extra cleaning passes, or more reinstatements when branch connections are more complex than expected. Restoration can also be split. A plumber may patch the access point, and the homeowner may need a separate contractor to match finish on concrete, pavers, or asphalt. When a quote states restoration is by others, that shifts budget risk to the homeowner.

Warranty language, specs, and compliance

Warranty language can raise or lower a bid because it changes what the contractor is willing to stand behind. One proposal may cover liner failure only, while another may include reinstatement work and post-lining documentation. Homeowners should also watch exclusions tied to pipe condition outside the lined segment, such as a collapse beyond the repaired run.

NASSCO’s CIPP specification guideline spells out items such as installation steps, acceptance requirements, and documentation concepts, and contractors sometimes reference this language when describing scope. When a quote references a standard, ask which inspection, testing, and post-install reporting steps are included so you can compare bids on scope, not just footage.

When DIY turns expensive

Homeowners can handle some parts safely, like improving access to an existing cleanout, clearing the work area, or paying for a camera inspection to confirm what is damaged. The liner installation itself is a different category. It requires controlled insertion, curing, and reinstatement tools that are not common homeowner equipment. Mistakes can block a line and force emergency cutting or excavation.

DIY also has a documentation problem. If a future sale or insurance claim hinges on proof of repair, a contractor’s post-lining camera video and invoice can matter. A failed attempt can still end with a contractor visit, plus extra cleaning to remove debris from the attempt.

Who this cost makes sense for

Makes sense if

• The line runs under a driveway, patio, mature landscaping, or a finished slab where excavation would trigger major restoration scope.
• A camera inspection shows cracks, root intrusion, or corrosion, but the pipe still has a passable path for a liner.
• A cleanout already exists in a workable spot, or a cleanout install is already planned as part of the job.
• The job needs limited digging because access is constrained by structures or utilities.

Doesn’t make sense if

• The pipe has a collapse, a major separation, or a missing section that blocks liner insertion.
• The line needs grade correction or rerouting, since lining follows the existing path.
• Creating access pits would disturb the same areas that open-cut replacement would disturb.
• Cleaning and spot repairs stack into repeated change orders, pushing the scope toward replacement.

For related dig-and-replace scope, see our trenching per foot cost guide. For interior epoxy-style work, our epoxy pipe lining cost article adds more detail on that method. If a clog or root mass is part of the job, our Roto-Rooter services cost guide shows common cleaning charges. If the project touches the street connection, our connect to a public sewer breakdown gives a separate set of fees that can apply in some areas.

Answers to Common Questions

Does trenchless lining always avoid digging?

No. Many projects still need at least one access pit or cleanout work, and some need a second pit for pulling, pushing, or equipment setup. The big change is fewer and shorter excavations compared with open-cut replacement.

Is a per-foot quote enough to budget the job?

It is a starting point. Budget also needs inspection, cleaning, reinstatement of branches, and any patching or surface restoration that is excluded from the plumbing scope.

What makes a bid jump from the low end to the high end?

Access constraints, heavy cleaning and descaling, multiple branches needing reinstatement, and restoration scope under concrete or asphalt tend to move totals more than the liner material on many residential lines.
