How much does Car Wiring Harness Replacement Cost?

Updated on August 10, 2026 | Written by Alec Pow
This article was researched using 14 sources. See our methodology and corrections policy.

Car wiring assembly repair or replacement can cost from about $250 to $600 for a localized connector or wire repair to roughly $1,500 to $5,000+ for a major engine, body, or dashboard wiring assembly job. The range is wide because a vehicle contains many separate wiring assemblies, and the bill depends on which section failed, whether the damage can be repaired, the price of the exact wiring assembly, and how many hours are needed to reach and replace it.

A full wiring assembly is often not the first repair choice. A shop may find a damaged connector, corroded terminal, broken wire, bad splice, or small subassembly that can be repaired or replaced without removing the main wiring assembly. Current electrical diagnosis alone averages $122 to $179 before the repair, according to RepairPal’s 2026 estimate.

Automotive wiring cost is driven by two separate numbers: the exact OEM part and the labor needed to reach it. Current OEM examples range from a connector costing only a few dollars to engine wiring assemblies priced above $2,000, before installation.

Article Highlights

• A small connector or localized wire repair can land around $250 to $600 (at $30 per hour, earning that amount would take about 1 to 2.5 full-time workdays, before taxes) when diagnosis and repair labor are included.
• A door or other accessible localized wiring replacement can cost roughly $500 to $1,500, depending on the part and labor time.
• Engine, body, and instrument-panel wiring assembly jobs can reach $1,500 to $5,000+.
• Electrical diagnosis alone currently averages $122 to $179.
• Almost half of general repair shops in a 2025 industry survey used labor rates of $120 to $159 per hour.
• The least expensive repair may be a connector, terminal, or permitted wire repair rather than a complete wiring assembly.
• Airbag and other safety-sensitive wiring should follow the automaker’s repair procedure rather than a generic wiring fix.

How Much Does a Car Wiring Harness Replacement Cost?

The table is not a flat national price list. It shows why one generic “wiring assembly replacement cost” is misleading. The correct part may cost $5, $500, $900, or more than $2,000, and access time can move independently of the parts bill.

What the Wiring Assembly Does

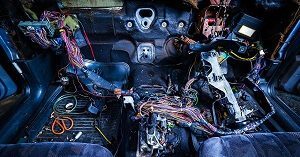

A modern car does not have one simple bundle that can be priced as one replacement part. It uses multiple wiring looms and electrical subassemblies to connect modules, sensors, lights, switches, actuators, motors, infotainment equipment, engine controls, restraint systems, doors, seats, and other electrical devices. The exact arrangement changes with engine, trim level, body style, drivetrain, options, and model year.

This is why a parts catalog often asks for a VIN before a major wire set is ordered. The correct assembly for the same model can change with equipment that looks unrelated to the failed circuit. The physical part can also run through an engine bay, under carpet, behind a dashboard, through a door, or along the body shell.

A wiring fault is not the same thing as a failed main assembly. A weak battery, blown fuse, failed module, damaged ground, corroded connector, broken terminal, or faulty device can produce symptoms that look like wiring trouble. Diagnosis comes before ordering an expensive replacement assembly.

Why Diagnosis Can Cost More

Electrical diagnosis is one of the unusual repair categories where finding the fault can cost more than fixing it. AAA explains that a shop may spend hours tracing an open circuit and then need only minutes to repair the wire once the break is located. Its electrical diagnosis explanation also notes that diagnostic work is often billed differently from ordinary flat-rate repairs because the required troubleshooting time cannot always be predicted.

Using current numbers shows how quickly that happens. Start with the $122 to $179 (about 4.1 to 6 hours of work at $30 per hour) electrical diagnosis range. Add one hour at $120 to $159 for an accessible repair and a $5.13 connector. The calculated total is roughly $247 to $343 before tax, shop supplies, wire, terminals, or additional diagnosis. If the fault takes another hour to reach or repair, the same small-part job moves to roughly $367 to $502.

Intermittent faults are especially difficult because the problem may not be present while the car is in the bay. Water intrusion, vibration, temperature, connector movement, and damaged insulation can make the symptom appear and disappear. Paying for tracing time is different from paying for an expensive part.

Repairing a Section vs Full Replacement

Some wiring damage can be repaired without replacing the complete assembly. Ford service information contains procedures that call for cutting damaged wiring, using specified heat-shrink material, and sealing the repair in defined situations. That Ford wire-repair procedure is a useful reminder that OEM-approved wire repair exists.

That does not make every damaged circuit a candidate for a generic splice. Connector type, wire gauge, environment, circuit function, shielding, twisted pairs, terminal design, and manufacturer instructions can change the permitted repair. A shop may also discover corrosion or heat damage extending far enough into the loom that replacing the section is more dependable than repairing one visible point.

Safety circuits need stricter treatment. Ford’s current owner information warns not to service, repair, or modify supplementary restraint system components without the proper service procedure. The airbag-system warning is a good example of why safety-sensitive wiring should not be treated like an ordinary accessory wire.

Three Realistic Wiring-Harness Bills

Localized connector fault: A current GM connector can cost only $5.13. Pair that with the $122 to $179 diagnosis range and one to two hours of labor at $120 to $159 per hour, and the planning calculation becomes about $247 to $502 before tax and small materials. The expensive part of this repair is finding and reaching the fault, not buying the connector.

Door wiring replacement: The cited Silverado front door wiring assembly carries a $459.66 MSRP. If a shop bills two to four hours at $120 to $159 per hour, parts plus installation math lands around $700 to $1,096. Diagnosis, tax, clips, terminals, or related door repairs can move the final invoice higher.

Major engine wiring job: A full engine wiring assembly can be much more expensive and far harder to access. For scale, HondaPartsNow currently lists a 2015 Civic engine wiring assembly at $1,783.05 with a $2,572.95 list price. The 2015 Civic wiring assembly listing shows how configuration-specific these parts can be. Using the $1,783.05 current seller price plus 10 hours at $120 to $159 gives a worked parts-and-labor total of about $2,983 to $3,373. At 20 hours, the same calculation becomes roughly $4,183 to $4,963 before diagnosis, taxes, supplies, or related repairs.

The third scenario explains why a major wiring assembly replacement can cross $5,000 even when the failure itself is electrical rather than mechanical. The parts price and disassembly time stack together.

Access Makes the Bill Jump

Access is the first major cost driver. A door loom can be far quicker to replace than one routed behind the instrument panel or through a crowded engine compartment. Seats, carpet, trim panels, consoles, intake parts, shields, brackets, retainers, and other components may stand between the technician and the failed wiring.

Damage can also spread beyond the first visible spot. Rodents may chew several branches. Water can corrode terminals inside more than one connector. Excess heat can harden insulation and damage nearby wires. A collision can pull connectors, break retainers, or crush wiring where it passes behind body panels.

Parts pricing is another trap. Ford’s official parts store states that dealers set customer prices and may use MSRP or their own selling price. Its parts pricing policy also says displayed parts prices exclude labor, taxes, and other applicable charges. The online part price is not the completed repair bill.

When Full Replacement Makes Sense

Makes sense if:

• Damage extends through multiple wires or branches and the manufacturer procedure favors assembly replacement.
• Corrosion or heat damage continues beyond one repairable connector.
• The correct replacement assembly is available and the vehicle’s value supports the labor bill.
• A previous repair has already failed or the loom has widespread physical damage.

Does not make sense if:

• The actual fault is a replaceable connector, terminal, ground, fuse, relay, or small subassembly.
• The shop has not isolated the electrical fault before quoting a complete replacement assembly.
• A manufacturer-approved localized repair can restore the affected circuit for much less.
• The repair estimate approaches the vehicle’s value and there are other major repairs pending.

Ask the shop to identify the exact replacement assembly by name and part number, the reason replacement is preferred over repair, the quoted labor hours, and any additional diagnostic authorization. That turns a vague electrical estimate into a bill that can be compared between shops.

What We Verified

• Checked: Current OEM catalog pricing varies sharply even within one brand, with a 2018 Ram powertrain wiring assembly carrying examples from $316 to $828 MSRP.
• Confirmed: Subaru’s current catalog lists instrument-panel wiring assembly examples around $397 to $517 on the same 2021 Outback wiring assembly.
• Cross-referenced: AAA’s repair network requires written estimates and states that the final bill at participating facilities will not exceed the estimate by more than 10% without customer approval, subject to its Approved Auto Repair terms.

Related Car Repair Costs

Wiring damage can appear alongside collision damage, corrosion, or battery problems. Body repairs that expose damaged electrical runs can be compared with the cost of replacing rocker panels and cab corners. A corroded battery connection may call for a much smaller battery terminal replacement, while low-voltage symptoms may lead back to the cost of replacing the car battery rather than a major wiring repair.

Answers to Common Questions

How much does major automotive wiring replacement cost?

A localized wiring replacement may cost around $500 to $1,500 installed, while a large engine, body, or dashboard wiring job can reach roughly $1,500 to $5,000+. The exact part and labor hours control the bill.

Can damaged automotive wiring be repaired instead of replaced?

Sometimes. OEM procedures allow certain connector, wire, and splice repairs, but the permitted method depends on the circuit and vehicle. Widespread corrosion, heat damage, or multiple damaged branches may favor replacement.

How much does electrical diagnosis cost?

RepairPal’s June 2026 estimate is $122 to $179 for electrical-system diagnosis before taxes, fees, and related repairs. Intermittent faults can require additional diagnostic time.

Why can automotive wiring replacement be so expensive?

The part may cost hundreds or thousands of dollars, and the main wire set can be routed behind major interior or engine-bay components. A large share of the bill can come from disassembly, installation, and electrical diagnosis.

Is major automotive wiring replacement a DIY job?

Small non-safety electrical repairs may be manageable for someone with the correct wiring diagrams, tools, and repair procedure. Main assemblies and safety-related circuits can involve extensive disassembly and systems that should be handled using manufacturer service information.
