How Much Does Torque Converter Replacement Cost?

Updated on August 13, 2026 | Written by Alec Pow
This article was researched using 9 sources. See our methodology and corrections policy.

Torque converter replacement typically costs about $700 to $1,800 for parts and professional labor, with many straightforward jobs landing around $700 to $1,200. An accessible vehicle with an inexpensive replacement converter can come closer to $600, while difficult transmission removal, expensive OEM parts, high local labor rates, or related transmission damage can push the bill past $2,000.

Current estimates from AutoZone, CarParts.com, Gearstar, AAA, RepairPal, and transmission specialists show that the converter itself is often only a few hundred dollars. Labor to remove or separate the transmission is usually what makes this an expensive repair.

Before approving a four-figure replacement, however, have the problem properly diagnosed. Shuddering, slipping, overheating, delayed engagement, and torque-converter-clutch trouble codes can point toward a failed converter, but similar symptoms can come from transmission fluid problems, wiring, solenoids, the valve body, an engine misfire, or internal transmission damage.

Article Highlights

Jump to sections

• Typical installed cost: $700 to $1,800 (at $30 per hour, earning that amount would take about 0.6 to 1.5 full-time workweeks, before taxes)
• Common straightforward repair: about $700 to $1,200
• Torque converter alone: commonly $150 to $500, although some applications cost more
• Typical labor time: roughly 4 to 5 hours on many vehicles, but difficult applications can take considerably longer
• Current mechanic labor rates: commonly $120 to $159 per hour, with rates below $100 and above $200 found nationally
• Major price driver: the transmission usually has to be removed or moved away from the engine to access the converter
• Hidden expenses: transmission fluid, seals, filter or pan service, core charges, diagnostics, towing, and any related transmission damage
• Do not replace it based on symptoms alone: a torque converter clutch code or shudder does not automatically prove the converter itself has failed

How Much Does Torque Converter Replacement Cost?

A reasonable 2026 budget is $700 to $1,800 (about 0.6 to 1.5 full-time workweeks at $30 per hour) for a professional torque converter replacement. The range is deliberately wider than some online averages because transmission access, shop labor rates, and the specific converter can change the invoice substantially.

A current torque converter repair estimate from AutoZone places replacement at $700 to $1,200 including parts and labor. CarParts.com’s replacement cost breakdown puts the repair at approximately $600 to $1,000, including a new converter costing about $150 to $500.

Gearstar gives a similar torque converter replacement range of around $600 to $1,200, including roughly $200 to $500 for the converter and $400 to $700 for labor. A June 2026 transmission-specialist pricing guide stresses that actual quotes depend heavily on transmission removal, fluid condition, converter-clutch problems, software behavior, and whether debris has spread through the transmission.

Repair situation	Typical budget	What changes the price
Lower-cost straightforward replacement	$600-$800	Accessible drivetrain, inexpensive converter, lower shop rate
Common professional replacement	$700-$1,200	Converter, transmission removal, new fluid and normal labor
Higher-labor replacement	$1,200-$1,800	More removal time, AWD/4WD hardware, higher labor rate, pricier part
Difficult or related-damage repair	$1,800-$2,000+	OEM or specialty converter, extensive labor, contamination or other transmission work

At a $30 hourly wage, earning the typical $700 to $1,800 repair cost would require about 23 to 60 hours of work before taxes, equivalent to roughly 3 to 7.5 eight-hour workdays.

Parts Are Usually the Cheap Part

The surprising part of a torque converter replacement is that the component itself may cost much less than the labor required to reach it. A typical replacement converter costs roughly $150 to $500 (about 0.6 to 2.1 full-time workdays at $30 per hour), although heavy-duty, specialty, performance, and some OEM units can cost more.

Current retail torque converter listings show why one universal parts price does not work. Remanufactured examples visible during our research ranged from about $95 to $655. Many also carried refundable core deposits from around $5 to $100.

Part expense	Planning range
Common replacement torque converter	$150-$500
Lower-cost remanufactured units	About $100-$300
Some heavy-duty or higher-priced units	$400-$650+
Refundable core charge	Often $5-$100+
Transmission fluid, seals and small parts	Varies by transmission and required service

A remanufactured converter can reduce the parts bill, but compare warranties rather than buying solely on price. Also ask whether the quoted price includes the core charge and whether returning the old converter earns that deposit back.

Why Labor Costs So Much

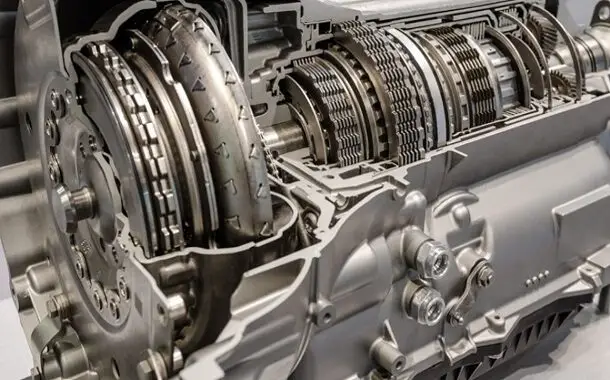

A torque converter sits between the engine and automatic transmission. It transfers engine power through transmission fluid, multiplies torque during acceleration, and uses a lock-up clutch on modern vehicles to reduce slip while cruising.

That location is why replacing a $250 part can create a $1,000-plus invoice. The technician normally has to support the drivetrain, disconnect components necessary for access, separate or remove the transmission, remove the old converter, correctly seat the replacement converter onto the transmission pump and splines, reinstall everything, restore the proper fluid level, and test the vehicle.

CarParts.com reports roughly four to five hours as a typical replacement time, while noting that certain difficult applications can take far longer. Labor time should therefore be checked for the exact year, make, model, engine, transmission, and drivetrain rather than estimated solely from vehicle size.

Labor rate compounds the difference. AAA’s 2026 mechanic labor-rate analysis reports that most shops charge approximately $120 to $159 per hour, while rates across the country extend from under $100 to more than $200 per hour.

Using those common rates, five billed hours equals roughly $600 to $795 in labor alone. Eight billed hours becomes about $960 to $1,272. This explains how two owners buying similarly priced converters can receive repair quotes hundreds of dollars apart.

The Hidden Costs

The torque converter and removal labor are only the beginning of some invoices. Transmission fluid is normally required during the repair, and a shop may also recommend or require seals, gaskets, a filter, pan service, cooler-line work, or additional cleaning if the old converter failed internally.

For comparison, ThePricer’s guide to a transmission fluid change shows how fluid service alone can range from a relatively inexpensive drain-and-fill to several hundred dollars when a filter, flush, or additional service is involved.

Other possible charges include diagnosis before teardown, shop supplies, taxes, towing if the vehicle should not be driven, and a temporary core deposit on a remanufactured converter. If metal or friction material from the failed converter has circulated through the transmission, the shop may recommend work beyond simply installing a new converter.

This is why a $300 converter does not imply a $300 repair. The final bill depends on what must be removed, what fluid and related parts must be replaced, and whether the failure remained isolated to the converter.

Do You Actually Need a Converter?

This is the most important question before spending $1,000 or more. Torque converter problems can cause shuddering, slipping, delayed acceleration, overheating, unusual transmission noises, RPM flare, poor fuel economy, and trouble engaging smoothly. Those symptoms are useful clues, but they are not a complete diagnosis.

For example, diagnostic trouble code P0740 relates to the torque converter clutch circuit. AutoZone’s P0740 diagnostic guidance calls for checking items such as the transmission wiring and torque converter clutch solenoid circuit. In other words, seeing “torque converter” in a trouble-code description does not automatically mean the mechanical converter must be replaced.

Likewise, shudder can come from problems outside the converter. A drivetrain vibration may even send owners down the wrong diagnostic path, which is why symptoms should be isolated before parts are ordered. Our guide to driveshaft balancing costs covers another source of speed-related vibration that may feel like a driveline or transmission problem.

A good diagnosis may include scanning transmission modules, examining the fluid for overheating or debris, road-testing under the conditions that produce the symptom, checking commanded versus actual converter-clutch operation, and ruling out engine, electrical, hydraulic, and internal transmission faults.

Converter vs Whole Transmission

If the converter has failed but the rest of the transmission remains healthy, replacing only the converter can save thousands of dollars compared with replacing the complete transmission.

RepairPal’s current transmission replacement estimate is approximately $6,166 to $6,685, with about $1,112 to $1,632 attributed to labor and roughly $5,053 to parts. Vehicle-specific costs can be significantly lower or higher.

Repair	Typical/current planning cost
Torque converter replacement	$700-$1,800
Higher-cost converter job	$2,000+
Complete transmission replacement, RepairPal current average	$6,166-$6,685

That does not mean every neglected converter will destroy a transmission. It means a confirmed converter failure deserves attention because excess heat, worn clutch material, or metallic debris can contaminate the fluid and damage other internal components.

If damage has already spread through the unit, compare the converter-only proposal with the price of an AAMCO transmission rebuild or a complete transmission replacement. Paying for converter removal and installation makes less sense if the transmission is already close to needing an overhaul.

Can You Replace It Yourself?

DIY replacement can reduce the cash expense to the converter, fluid, seals, and any tools you need, but this is not comparable to changing a belt or bolt-on accessory. AutoZone’s torque converter replacement procedure places DIY parts around $150 to $500 plus fluid and gaskets and professional replacement around $500 to $1,500.

The challenge is access. In most applications, the transmission must be supported and removed or moved far enough away from the engine to reach the converter. A transmission jack, substantial lifting equipment, torque specifications, correct fluid-filling procedure, and enough experience to seat the converter properly are important.

An incorrectly seated converter can damage the transmission pump during installation. For someone already equipped to remove transmissions, DIY savings can be meaningful. For most owners, this is a professional-level drivetrain repair where a labor warranty has real value.

How to Pay Less

• Get the failure confirmed first. The cheapest unnecessary converter replacement is still an expensive mistake.
• Compare complete quotes. Ask whether fluid, seals, taxes, shop supplies, diagnosis, and the core charge are included.
• Compare independent transmission specialists with general repair shops and dealers. Their labor rates and familiarity with transmission removal can differ.
• Ask about remanufactured converters. A quality remanufactured unit with a solid warranty can cost much less than certain OEM replacements.
• Check the parts-and-labor warranty. Saving $100 on a converter is not attractive if a repeat failure leaves you paying the transmission-removal labor again.
• Ask what the fluid inspection showed. Significant metal or clutch debris may change whether converter-only replacement is sensible.

Be cautious about supplying your own converter solely to save money. Some repair shops will install customer-supplied parts but will not warranty the component, while others will not install outside drivetrain parts at all. Ask before purchasing anything.

Answers to Common Questions

How much does it cost to replace a torque converter?

Budget about $700 to $1,800 for parts and professional labor. Several current published estimates cluster around $600 to $1,200, while difficult transmission access, costly parts, and high regional labor rates can push the total above $2,000.

How much does the torque converter itself cost?

A common replacement converter costs around $150 to $500. Current retail listings include some remanufactured units below $150 and heavy-duty examples above $500. A refundable core deposit may also be charged until the old unit is returned.

How long does torque converter replacement take?

About four to five labor hours is a useful benchmark for many vehicles, but actual book time varies significantly. Some applications require substantially more work to remove the transmission and access the converter.

Can I drive with a bad torque converter?

Driving with a confirmed failing converter is risky because slipping, excess heat, poor power transfer, and internal debris can lead to additional transmission damage or eventually leave the vehicle unable to drive normally. Have significant shuddering, slipping, overheating, or abnormal transmission noise diagnosed promptly.

Does a P0740 code mean I need a new torque converter?

No. P0740 identifies a torque converter clutch circuit problem, but possible causes can involve wiring, the clutch solenoid, hydraulic operation, or other transmission faults. Diagnosis should come before replacement.

What does torque converter shudder feel like?

Drivers often describe converter shudder as a vibration similar to briefly driving over a rumble strip, commonly occurring while the converter clutch is attempting to lock or unlock. Because engine misfires, tire problems, driveshaft issues, and other transmission faults can also produce vibration, the sensation alone does not prove converter failure.

Is replacing a torque converter cheaper than replacing the transmission?

Usually, by a wide margin when the converter is the only failed component. A typical converter job around $700 to $1,800 can be several thousand dollars less than a complete transmission replacement. The calculation changes if converter debris or overheating has already caused major internal transmission damage.

Should the transmission fluid be replaced with the torque converter?

Fresh transmission fluid is normally part of converter replacement because the transmission is opened and fluid is lost during the repair. The exact procedure depends on the transmission and the reason the converter failed. If the old fluid contains significant debris, the shop should determine whether additional cleaning, filter service, cooler work, or internal transmission inspection is required.
