How Much Does Boat Bellows Replacement Cost?

Updated on June 27, 2026 | Written by Alec Pow
This article was researched using 5 sources. See our methodology and corrections policy.

Boat bellows replacement usually costs $1,200 to $2,500 at a marine shop when the job includes the U-joint bellows, exhaust bellows, shift cable bellows, drive removal, resealing, and a gimbal bearing check. A simpler bellows-only repair can land closer to $700 to $1,400, while a leak that has damaged the gimbal bearing, U-joints, shift cable, or sterndrive parts can reach $2,500 to $4,000+.

The cost depends on the drive brand, labor rate, corrosion, whether the boat has a MerCruiser or Volvo Penta sterndrive, and how long water has been leaking into the bellows area. A boat owner who catches cracked rubber before water reaches the bearing may pay for rubber parts and labor only. A boat owner who keeps running with water inside the U-joint bellows can end up paying for a larger transom and drive repair.

Boat bellows are not found on every boat. The cost applies mainly to sterndrive boats, also called inboard/outboard or I/O boats. Outboards and straight inboards use different sealing and drive layouts, so their leak repairs follow a different pricing path.

Article Highlights

Jump to sections

• Common shop price: A full sterndrive bellows replacement usually costs $1,200 to $2,500 (at $30 per hour, earning that amount would take about 1 to 2.1 full-time workweeks, before taxes), including parts and labor.
• Lower-end repair: A bellows-only job with no bearing or drive damage can cost about $700 to $1,400.
• Higher-end repair: Bellows leaks with gimbal bearing, U-joint, shift cable, or corrosion damage can cost $2,500 to $4,000+.
• DIY parts budget: A bellows kit, gimbal bearing, seals, adhesive, lubricant, and tools can cost about $350 to $900.
• Search term clarity: The job is more accurately called sterndrive bellows replacement, MerCruiser bellows replacement, Volvo Penta bellows replacement, or bellows and gimbal bearing replacement.

How Much Does Boat Bellows Replacement Cost?

A marine shop quote should separate the rubber bellows from the related drive work. The lowest bill is a planned replacement where the drive comes off cleanly, the bellows are cracked but not leaking badly, and the bearing, U-joints, clamps, and shift cable are still serviceable. That job may be around $700 to $1,400 (about 0.6 to 1.2 full-time workweeks at $30 per hour). A fuller service with all bellows, gimbal bearing, seals, adhesive, and inspection time is closer to $1,200 to $2,500.

The high end starts when water has already entered the U-joint bellows. Once water reaches the gimbal bearing or U-joints, the shop may recommend bearing replacement, U-joint work, shift cable replacement, drive service, alignment checks, and extra corrosion cleanup. That can move the job to $2,500 to $4,000+, especially if the boat sat in water after the leak began.

Repair scenario	Common cost	What changes the price
Bellows inspection only	$100 to $250	Drive condition check, visual inspection, leak source review
Shift cable bellows only	$300 to $700	Smaller rubber part, but labor depends on access
Exhaust bellows only	$400 to $900	Drive access, clamps, adhesive, corrosion cleanup
U-joint bellows only	$600 to $1,200	Drive removal, seals, clamps, bearing inspection
Full bellows kit and gimbal bearing	$1,200 to $2,500	All bellows, gimbal bearing, seals, labor, alignment check
Bellows leak with drive damage	$2,500 to $4,000+	U-joints, bearing, cable, corrosion, water intrusion repair

A realistic shop example looks like this: $450 for a bellows kit, gimbal bearing, clamps, seals, adhesive, and lubricant, plus $1,050 in labor to remove the drive, replace the parts, inspect the bearing area, reinstall the drive, and test the seal. That puts the repair at about $1,500. If the shop finds a failed U-joint and adds $600 in parts and labor, the same visit becomes $2,100.

What Sterndrive Bellows Do

Boat bellows are flexible rubber seals on sterndrive boats. They protect moving parts where the drive passes through the transom area. Boatsetter describes boat bellows as flexible gaskets that protect a boat engine from water and says they are located on stern drives, not on inboards or outboards, in its boat bellows guide.

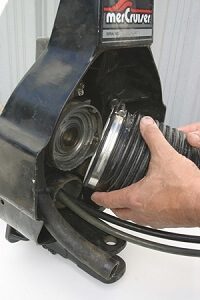

The main bellows are the U-joint bellows, exhaust bellows, and shift cable bellows. The U-joint bellows protects the drive shaft and U-joint area. The exhaust bellows carries exhaust gases and water flow through the drive area. The shift cable bellows protects the shift cable where it passes through the transom assembly.

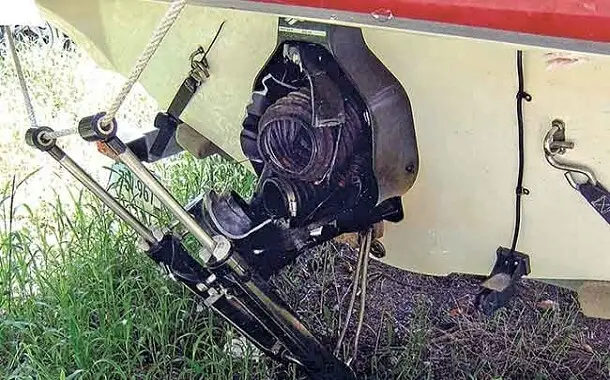

A sterndrive setup places the engine inside the boat and the drive unit outside the hull. The drive pivots for steering and trim, so the seals need to flex every time the drive turns or tilts. A standard definition of the sterndrive layout explains that the engine sits forward of the transom and the drive unit sits outside the hull through the sterndrive propulsion system. That motion is why rubber bellows wear out.

Bellows-Only vs Full Transom Service

A bellows-only quote sounds cheaper, but it is not always the smartest repair once the drive is off. If one rubber bellows is cracked from age, the other rubber parts may be close behind. Many shops prefer replacing the U-joint bellows, exhaust bellows, and shift cable bellows together because the labor overlap is high.

The gimbal bearing is the other major decision. If it is smooth, dry, and quiet, the shop may leave it alone. If it is noisy, rusty, rough, or contaminated by water, replacing it during the same visit is cheaper than paying for another drive removal later. That is why many owners see quotes for bellows and gimbal bearing together rather than for one rubber piece alone.

Parts selection also matters. MerCruiser owners can look up model-specific assemblies through the Mercury parts catalog, and Volvo Penta owners should match parts through the drive model rather than by guesswork. A mismatch in clamp, adhesive, bellows shape, or shift cable setup can create a leak after the repair.

Parts, Labor, And Marine Shop Pricing

Parts can be a smaller part of the job than labor. A basic rubber bellows part may not look expensive, but a full job can include three bellows, gimbal bearing, clamps, O-rings, drive gasket, lubricant, bellows adhesive, shift cable parts, an alignment check, gear lube service, and corrosion cleanup. A DIY parts basket can land around $350 to $900 (about 1.5 to 3.8 full-time workdays at $30 per hour) before tool purchases.

Marine labor drives the shop price because the outdrive often needs to come off. The shop may need to support the drive, remove the prop, detach trim cylinders, remove the drive, clean the bellows area, replace clamps and seals, install adhesive, check alignment, reinstall the drive, fill or check gear lube, and water-test the repair. Rusted hardware can add hours.

Labor rates vary by marina, season, and region. A freshwater trailer boat that has been serviced every year is easier than a saltwater boat with corroded clamps and frozen fasteners. Spring and early summer can also carry longer shop queues. If the boat is blocked in storage or needs haul-out time, the bill may include launch, haul, yard, or travel charges apart from the mechanical repair.

Water Leak Damage That Raises The Bill

A bellows leak is expensive because water enters an area where it should not be. A small drip can damage the gimbal bearing. A larger leak can send water into the bilge. If water sits in the U-joint area, it can corrode U-joints, yokes, shafts, and related drive components. The repair grows from rubber replacement to drive repair.

Noise is a warning sign. Growling, rumbling, vibration, or clunking when turning can point to bearing or U-joint trouble. Water in the bilge after the boat sits at rest can point to a torn U-joint bellows or another transom leak. Shifting problems can point toward shift cable bellows or shift cable issues. Exhaust noise or overheating can point to exhaust bellows or cooling flow problems.

The leak source should be confirmed before parts are ordered. Boats can leak through bellows, drain plugs, transom assemblies, hoses, through-hulls, livewell fittings, trim lines, and hull damage. If water has already damaged fiberglass or transom material, the repair may move into a different category. In that case, fiberglass boat repair costs become a better comparison than a standard bellows kit.

MerCruiser And Volvo Penta

MerCruiser and Volvo Penta sterndrives share the same broad problem, but the parts and labor steps are not identical. The model, serial number, drive generation, shift system, and prop setup decide which bellows kit fits. A shop should not quote the final parts price until it knows the drive model.

Mercury’s dealer network can be found through its dealer locator, which helps owners find support for Mercury and MerCruiser products. Volvo Penta owners can use the Volvo Penta locator to find service support for Volvo drives. Dealer support can cost more than a small independent shop, but it may help when model-specific parts, software, or factory procedures are needed.

Aftermarket parts can reduce the parts bill, but the risk is fit and material quality. A low-cost bellows that cracks early can create a much larger bill. OEM parts cost more, but many owners prefer them for a hard-to-access water seal. The quote should show whether the shop is using OEM, aftermarket, or mixed parts.

Can You Replace Boat Bellows Yourself?

A skilled DIY owner can replace sterndrive bellows, but this is not a beginner repair. The drive can be heavy, the alignment matters, and a small installation error can leak water into the boat. A person who has never removed an outdrive should not treat this like a quick rubber-gasket swap.

Boatsetter’s repair outline says the lower unit may need to come off to reach the bellows and says this is likely not something to try alone. That is a more accurate frame than saying the job is easy. The work may require a hinge pin tool, bellows expander, alignment bar, torque tools, adhesive, lubricant, drive stand, and enough experience to spot bearing or U-joint damage.

The DIY cost can still be attractive. If parts, adhesive, and rented tools cost $500 and the shop quote is $1,600, the labor savings are about $1,100. That savings disappears if the owner tears a new bellows, misroutes a shift cable, damages a clamp, misses a bad gimbal bearing, or creates a leak that leads to water damage.

How To Keep A Sterndrive Bellows Bill Under Control

The best cost control is inspection before failure. Check the bellows during annual service, before launch, and any time the drive has been sitting in the raised position for long periods. Look for cracks, dry rot, loose clamps, cuts, stiff rubber, water in the bilge, gear lube contamination, bearing noise, and shifting changes.

Ask the shop for a written quote that separates parts, labor, haul-out, bellows kit, gimbal bearing, shift cable, gear lube, taxes, and shop supplies. Ask whether the price includes all three bellows or only one. Ask whether the drive will be aligned after reinstall. If the quote includes a gimbal bearing, ask whether it is being replaced because of age, noise, roughness, or water damage.

Some owners combine bellows replacement with annual sterndrive service. That can reduce repeated labor because the drive may already be off for inspection, gear lube service, impeller work, or alignment. A larger winter or preseason repair can still cost more in one bill, but it may prevent a midseason leak and a second shop visit.

Other boat repairs can compete for the same budget. If the boat also needs interior work, wiring, or cosmetic repairs, price those separately. Pages on boat upholstery repair and boat rewiring are useful comparisons because they show how quickly boat ownership costs stack up outside the drive system.

Answers to Common Questions

How much does boat bellows replacement cost?

Boat bellows replacement usually costs $1,200 to $2,500 at a marine shop for a full sterndrive bellows service. A smaller job may cost $700 to $1,400, and leak-related drive damage can push the bill to $2,500 to $4,000+.

How much does it cost to replace bellows and a gimbal bearing?

Replacing the bellows and gimbal bearing together often costs $1,200 to $2,500. The price rises if the U-joints, shift cable, yoke, seals, or corroded hardware need work during the same visit.

Can bad bellows sink a boat?

Yes. A torn U-joint bellows or failed seal can let water enter the boat. A slow leak may first show as water in the bilge, but a larger tear can become a serious water-intrusion problem.

How often should boat bellows be replaced?

Many owners inspect bellows every season and replace them when the rubber cracks, hardens, leaks, or reaches the service interval recommended for the drive. The right timing depends on storage, saltwater use, age, and drive position.

What are signs of bad sterndrive bellows?

Warning signs include water in the bilge, cracked rubber, loose clamps, growling or rumbling near the gimbal bearing, vibration when turning, shifting trouble, exhaust noise, or corrosion around the bellows area.

Can I replace boat bellows myself?

Yes, but only if you have sterndrive experience, the right tools, and a safe way to remove and support the drive. A bad installation can leak and damage the bearing, U-joints, or transom assembly.

Do outboard boats have bellows?

Not in the sterndrive sense covered here. This cost article applies to sterndrive boats. Outboards and straight inboards use different drive and sealing layouts.
